Jaw Crusher

Name: Jaw Crusher
Brand: SHANGHAI CLIRIK MACHINERY CO., LTD.
Price: 15200 USD
Availability: InStock

15200 USD ($)/Unit

Get a Price/Quote

Product Details:

Product Type Jaw Crusher
General Use Industrial
Material Stainless Steel
Computerized No
Control System PLC Control
Voltage 220-440 Volt (v)
Feature High Efficiency
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Jaw Crusher Price And Quantity

Minimum Order Quantity 1 Unit
Price 15200 USD ($)/Unit

Jaw Crusher Product Specifications

Computerized No
Color White
General Use Industrial
Warranty 1 Year
Feature High Efficiency
Voltage 220-440 Volt (v)
Control System PLC Control
Material Stainless Steel
Product Type Jaw Crusher

Jaw Crusher Trade Information

Supply Ability 1000 Unit Per Month
Delivery Time 15 Days

Product Description

We are an authentic trader, manufacturer, exporter and supplier of ergonomically designed Jaw Crusher, which is mainly utilized in diverse industries such as construction, chemical, mining, refractory materials, metallurgy, cement and ceramics. This crushing equipment is best suitable to crush both soft and hard ores with wide strength less than 320 MPa. Our offered Jaw Crusher breaks efficiently materials in fine and medium size. Furthermore, we have made this crushing machine available in various models and other specifications at marginal prices.

Features :

Jaw crusher is characterized by high crushing ratio
Uniform particle size
Simple structure
Reliable performance
Easy maintenance and economic operation.

Application :

Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring. The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.

When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.

Specification :

Type	Feed Opening Size(mm)	Feeding Size (mm)	Output Open Range (mm)	Capacity (t/h)	Power (kw)	Dimension LxWxH (mm)
PE150x250	150X250	125	10-40	1-5	5.5-7.5	922x745x933
PE200x350	200X350	125	15-40	5-16	7.5-11	1056x1142x1220
PE250x400	250X400	210	20-60	5-20	15-18.5	1430x1310x1340
PE400x600	400X600	350	40-100	15-60	30-37	1700x1732x1653
PE500x750	500X750	425	50-100	40-100	45-55	2035x1921x2000
PE600x900	600X900	480	65-160	60-140	55-75	2290x2206x2370
PEX250x400	250X400	210	<12	5-10	15-18.5	1430x1310x1340
PEx250x1200	250X1200	210	25-60	20-60	37-45	2192x1605x1415

Advanced Control for Reliable Crushing

Equipped with a sophisticated PLC control system, this Jaw Crusher enables users to manage operations efficiently while maintaining high safety standards. The control interface simplifies adjustments, making it suitable for varied industrial environments where reliability and precise command are crucial. The user-friendly design significantly reduces training time, allowing operators to focus on productivity and reduced downtime.

Built for Industrial Strength and Efficiency

Constructed from premium stainless steel, the Jaw Crusher withstands rigorous industrial use. Its high-efficiency mechanism ensures substantial output with minimal energy consumption. The white finish and durable build make it an appealing and long-lasting choice for heavy-duty operations in numerous industries, positioning it as a cost-effective investment for businesses in India.

FAQ's of Jaw Crusher:

Q: How does the PLC control system enhance the operation of the Jaw Crusher?

A: The PLC control system streamlines the crusher's operation by enabling precise and user-friendly control of key functions. This leads to consistent performance, easier troubleshooting, and quick adjustments, thereby maximizing uptime and efficiency in industrial applications.

Q: What is the recommended voltage range for this Jaw Crusher and why?

A: It operates reliably within a 220-440 Volt (v) range, accommodating the standard power supplies found in most industrial settings across India. This makes it easy to integrate into existing facilities without extensive electrical modifications.

Q: When is the Jaw Crusher ideally used in industrial processes?

A: The Jaw Crusher is best utilized during the initial stage of material size reduction in various industrial processes. It is especially suitable for mining, construction, and recycling industries where primary crushing of hard materials is required.

Q: Where can this Jaw Crusher be installed and used effectively?

A: This machine is designed for industrial establishments, including factories, processing plants, and manufacturing units across India. Its sturdy construction and efficient performance make it suitable for demanding environments.

Q: What are the primary steps involved in operating this Jaw Crusher?

A: To use the crusher, supply the appropriate voltage, set the desired parameters using the PLC control, ensure material feed into the crushing chamber, and monitor operations via the control panel for optimized safety and output.

Q: What benefits does using a stainless steel Jaw Crusher offer?

A: Stainless steel construction provides exceptional resistance to corrosion, extends equipment lifespan, and ensures reliable performance even under continuous industrial use. This results in lower maintenance costs and sustained output quality.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'New Items' category

Wollastonite Grinding Mill Price : 9999 USD ($) Minimum Order Quantity : 1 Color : Other, Light Blue Automatic : Yes Computerized : Yes Voltage : 380 V General Use : Grinding Material : Galvanized Steel Product Type : HGM Control System : PLC Control Grinding Wheel Speed : 1400 rpm Feature : Other, High Efficiency, Low Noise Table Size : 250x500 mm Floor Space : 3000x2500x2200 mm Model : HGM Series Dimension (L*W*H) : 3200x2100x2600 mm Spindle Speed : 2800 rpm Capacity : 045t/h Cubic Meter (m3) Power : 45 kW Table Slide Way : Other, Linear Slide Grinding Length : 300 mm Grinding Wheel Size : 150x32x20 mm Weight (kg) : 6800 kg Type : Other, Grinding Mill Rotation : Vertical CNC Or Not : Other, Not CNC Magnetic Chuck Size : 250x500 mm Fuel Tank Capacity : 80 L

Send Inquiry

Barite Grinding Mill Price : 9999 USD ($) Minimum Order Quantity : 1 Color : Other, White & Blue Automatic : Other, SemiAutomatic Computerized : No Voltage : 220/380 V General Use : Grinding Barite Mineral Material : Cast Iron Product Type : Grinding Mill Control System : Other, Manual / Automatic Grinding Wheel Speed : 1450 rpm Feature : Other, High Efficiency, Low Noise, Energy Saving Table Size : 700 x 400 mm Floor Space : 2500 x 1800 mm Model : BGM700 Dimension (L*W*H) : 2500 x 1800 x 2100 mm Spindle Speed : 2800 rpm Capacity : 38 t/h Power : 7.5 kW Table Slide Way : Other, Double V type Grinding Length : 700 mm Grinding Wheel Size : 355 x 38 x 127 mm Weight (kg) : 3800 Type : Other, Raymond Mill Rotation : Clockwise/Counterclockwise CNC Or Not : Other, Not CNC Magnetic Chuck Size : 600 x 300 mm Fuel Tank Capacity : 45 L

Send Inquiry

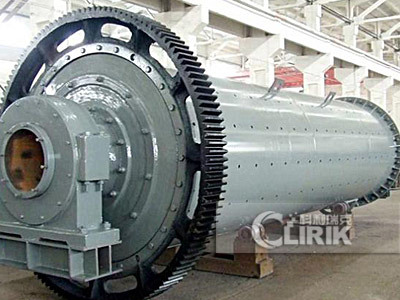

Energy-saving Ball Mill Grinder Price : 9999 USD ($) Minimum Order Quantity : 1 Color : Green Automatic : Yes Computerized : No Voltage : 380 V General Use : Industrial Grinding and Milling Material : Other, Steel Product Type : Ball Mill Grinder Control System : Manual Grinding Wheel Speed : 210 r/min Feature : Other, Energy Saving, Low Noise, High Efficiency Table Size : Customizable Floor Space : Variable (as per model) Model : Energy Saving Series Dimension (L*W*H) : Depends on Model Spindle Speed : 21 r/min Capacity : Customizable, up to several tons/hour Power : 18.5 kW Table Slide Way : Other, Precision Slide Grinding Length : Depends on Model Grinding Wheel Size : Standard/Custom Weight (kg) : Varies by configuration Type : Other, Energysaving Ball Mill Rotation : Variable CNC Or Not : Other, Not CNC Magnetic Chuck Size : Customizable Fuel Tank Capacity : N/A (Electric)
