Bauxite Grinding Mill Machine

Product Description

Introduction ofbauxite grinding mill machine

Brand:CLIRIK
Type:bauxite grinding mill machine
Models:HGM80, HGM90, HGM100, HGM125, and HGM1680L
Capacity:0.4 -30t/h
Finished size:1502500 meshes, 9-100 um/mesh
Warranty:a).one year against manufacturing defect; b).offer lifetime consultation on problems occurred.

Technical parameters ofbauxite grinding mill machine

Model	HGM80	HGM90	HGM100	HGM125	HGM1680L
RingDiameter(mm)	800	900	1000	1250	1680
RingNumber(PCS)	3	3-4	4	4	4
RollerNumber(PCS)	18-21	24-29	28-36	30-44	30-40
MainShaftSpeed(r.p.min)	230-240	200-220	180-200	135-155	120-130
InputSize(mm)	0-10	0-10	0-15	0-15	0-20
FinishedSize(um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	100-6 (150-2000)	100-9 (150-1500)
Capacity(t/h)	0.4-4.5	0.6-6.5	1-9	2-16	3.8-30
OutletSizeL*W*H(m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	14*9*10.25	26.3*7.5*11.9

Unit: KW	HGM80	HGM90	HGM100	HGM125	HGM1680L
Main Unit	55-75	2*45	132	185-200	315
Classifier	18.5	18.5	30	37-4*15	5*18.5
Blower	45	55	75	2*45-2*55	2*75-2*90
Crusher	18.5	18.5	18.5	45	75
Bucket Elevator	3	3	4	4	7.5
BeltConveyor Feeder	2.2	2.2	2.2	3	3
Spiral Conveyor	3	3	3-4	2*3	2*5.5
Discharging Valve	2*0.75	1*0.75 1*1.1	2*1.1	2*1.1	2*0.75-2*1.5
Air compressor	11	15	22	2*15-37	55
Remark: For the data with prefix such as "2*xx",it means there are two motors 2*0.75,configuredfor one item Forexample,discharging valve,HGM80 with configuration it means there are 2 pieces of 0.75KW motors installed with discharging valve.

Applications of bauxite grinding mill machine
HGM bauxite grinding mill machine is the new type mining equipment for making micro powders, fine powders,which is widely applied in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics, and so on.

Production line of bauxite grinding mill machine

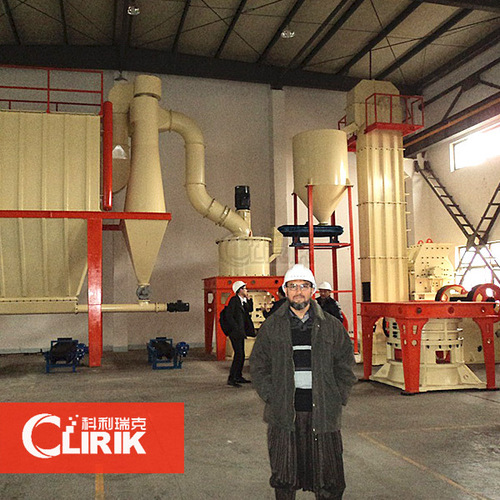

The whole set HGM series bauxite grinding mill machine consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems.

Features & Advantages of bauxite grinding mill machine
1.High Efficiency
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2.Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.
3.High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4.High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97-5um.
5.Environment-friendly

High Precision Performance

The Bauxite GM-800 is equipped with an advanced PLC or manual control system and a high-quality Siemens motor, offering both precision and reliability in demanding industrial grinding applications. Its computerized settings ensure consistently accurate results, while its double V type table slide way and robust construction provide stability and durability for continuous grinding.


Integrated Automation & Safety

This machine features both automatic and manual lubrication, an integrated dust collection system, and a noise emission level of 80 dB(A), ensuring a safe, efficient, and low-maintenance operation. The combination of CNC capability and user-friendly controls allows for easy adjustment and monitoring of grinding parameters, maximizing operational productivity.


Versatile Industrial Application

Designed for a range of industries, the GM-800 handles various bauxite grinding requirements in mining, metallurgy, chemistry, and refractory work. Its adaptable control options, variable spindle speed, and customizable color and dimensions make it suitable for different production environments, supporting capacities of 15 T/h.
