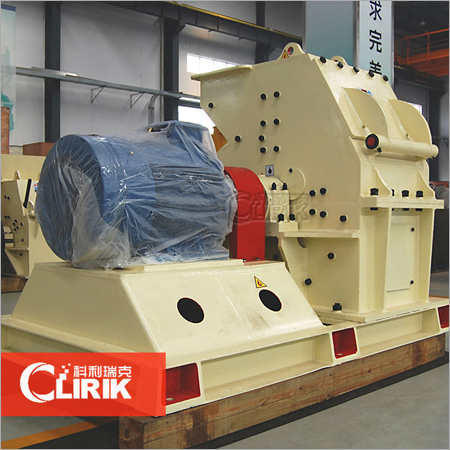

Limestone Hammer Mill
Product Details:
- Model LMH Series
- Rotation Clockwise
- Product Type Hammer Mill
- General Use Used for grinding and crushing limestone into fine particles for industrial processes
- Material Mild Steel / Cast Iron
- Type Vertical Hammer Mill
- Capacity Up to 5000 kg/hr
- Click to View more
X
Limestone Hammer Mill Price And Quantity
- 1 Unit
- USD ($)
Limestone Hammer Mill Product Specifications
- 380V/415V, 3 Phase
- Manual
- Industrial grey or customized
- Vertical Hammer Mill
- Mild Steel / Cast Iron
- Used for grinding and crushing limestone into fine particles for industrial processes
- No
- 2400 mm x 1800 mm x 1500 mm
- Semi-Automatic
- LMH Series
- Not CNC
- Approx. 2400 mm x 1800 mm
- 1200 - 1800 RPM
- High crushing efficiency, robust construction, easy maintenance
- 11-45 kW depending on model
- Hammer Mill
- Custom Designed per Mill Specification
- 1800 - 3500 kg
- Electric powered, no fuel tank
- Up to 5000 kg/hr
- Clockwise
- Varies by model, up to 800 mm
- 1800 RPM
Limestone Hammer Mill Trade Information
- Shanghai
- 1000 Unit sets Per Month
- 15 Days
- Wooden box
- All India
- CE&ISO
Product Description
Shanghai Clirik Machinery Co. Ltd is a leading name in the industry for manufacturing, exporting and supplying the efficient and advanced technology in-built grinding mills. We present Limestone Hammer Mill which has gained popularity in the market for its salient features and best performance. The hammer mills are employed for the fine crushing and grinding of materials like gypsum, potash, limestone, glass, china-clay, diatomite, chalk, phosphates, barite, terrazzo, coal, slag and up to 100 different kinds of materials.
Advantages and Features:
Advantages and Features:
- High capacity and the high crushing ratio
- Uniform particle size, very simple structure
- Low on investment and easy management and maintenance
- Good stability, high reliability
- Feeding size of 350 mm
- The fineness of material ranges from 5 to 20 mm
- It can hold a capacity of 5-30 T/H
- Uses high-speed rotary hammers to crush materials and mainly applied to the industries of chemistry, metallurgy, mining, cement, construction, refractory materials and ceramics. It can crush and grind hard and soft ores into medium or small size.
- Limestone Hammer Mill consists of the frame; rotor and supports iron and grate bars. The frame is divided into two parts; upper parts and a lower part which are welded by steel plates after being cut. Liners are made from high manganese steels within the frame and can be replaced after being worn out. The rotors consist of the pin shafts, turn plate, and hammers which are grouped regularly in the main shaft.
- The motor of the mill drives the rotors to rotate quickly in the crushing chamber and hammers spread outward as a result of centrifugal force. The materials entering the crusher through the feeding inlet are impacted, cut and grounded by the high speed hammer heads to a smaller size. The grate bars are there under the rotor assembly which grates the material with a size smaller than the grate mesh, the fine material passes and screened out the other material which is left in the crushing chamber for further hammered until reaching the standard size. The fineness of the material can be adjusted by changing the grate bars and the gap between the rotors and the grate bars is also adjustable according to the different requirement.
High Crushing Efficiency and Durable Design
The LMH Series vertical hammer mill is renowned for its high crushing efficiency, robust construction, and stable operation in demanding industrial environments. Its customizable grinding wheel size and speed range (12001800 RPM) allow precision control over particle size, making it suitable for diverse applications in cement, chemical, and mining sectors.
Seamless Operation and Advanced Safety Features
Equipped with an electric motor drive (11-45 kW), overload protection, and an emergency stop switch, the mill prioritizes operator safety during continuous duty cycles. The floor-mounted design ensures stability, while low operational noise and temperature tolerance (up to 80C) add to its suitability for long-term production lines.
Easy Maintenance for Maximum Productivity
Routine maintenance recommended at 500-hour intervals is straightforward, reducing downtime and ensuring consistent performance. The mills robust mild steel or cast iron construction enables reliable operation under heavy use, and customizable features make adjustment and upkeep efficient for various process requirements.
FAQs of Limestone Hammer Mill:
Q: How does the LMH Series vertical hammer mill process limestone for industrial use?
A: The LMH Series hammer mill uses swinging multi-edge hammers (8-12) rotating at speeds between 1200 to 1800 RPM to crush and grind limestone chunks (2050 mm input) into fine particles with adjustable size ranges from 0.5 mm to 5 mm, suitable for cement, chemical, and mining applications.Q: What safety measures are built into the limestone hammer mills design?
A: The hammer mill incorporates overload protection and an emergency stop switch to ensure operator safety. Additionally, its noise level remains under 85 dB at 1 meter and it is designed for secure floor mounting, reducing operational risks during heavy-duty industrial use.Q: When is maintenance required on the LMH Series hammer mill, and how is it performed?
A: Regular maintenance is recommended every 500 operating hours. Maintenance tasks typically involve inspecting and replacing worn hammers, checking the drive and control components, cleaning the discharge system, and ensuring rotor and grinding wheel integrityall facilitated by the mills accessible design.Q: Where is the LMH Series hammer mill most effectively used?
A: This hammer mill is best utilized in industrial environments such as cement factories, chemical processing plants, and mining sites where continuous fine grinding of limestone is required. Its sturdy construction and adaptability make it suitable for both large-scale and specialized installations.Q: What is the process for adjusting the output particle size on this hammer mill?
A: Operators can manually adjust the mill settings, including grinding wheel parameters and hammer configurations, to control the final output size. The adjustable range (0.5 mm-5 mm) allows precise tailoring to meet specific industrial requirements for different production processes.Q: How does the discharge system work on the LMH Series hammer mill?
A: The unit offers two discharge options: a cyclone separator for efficient collection of fine particles and a bottom hopper for direct output. Each system is designed to handle continuous operation and easy material handling, ensuring smooth integration with downstream processing equipment.Q: What are the operational benefits of choosing an electric-driven hammer mill over other drive methods?
A: Electric motor-driven mills provide reliable, consistent power (11-45 kW), are free from fuel tank requirements, and support environmentally friendly operation. They also offer immediate start-stop control, reduced maintenance, and stable performance in heavy-duty, continuous-use settings.Tell us about your requirement
