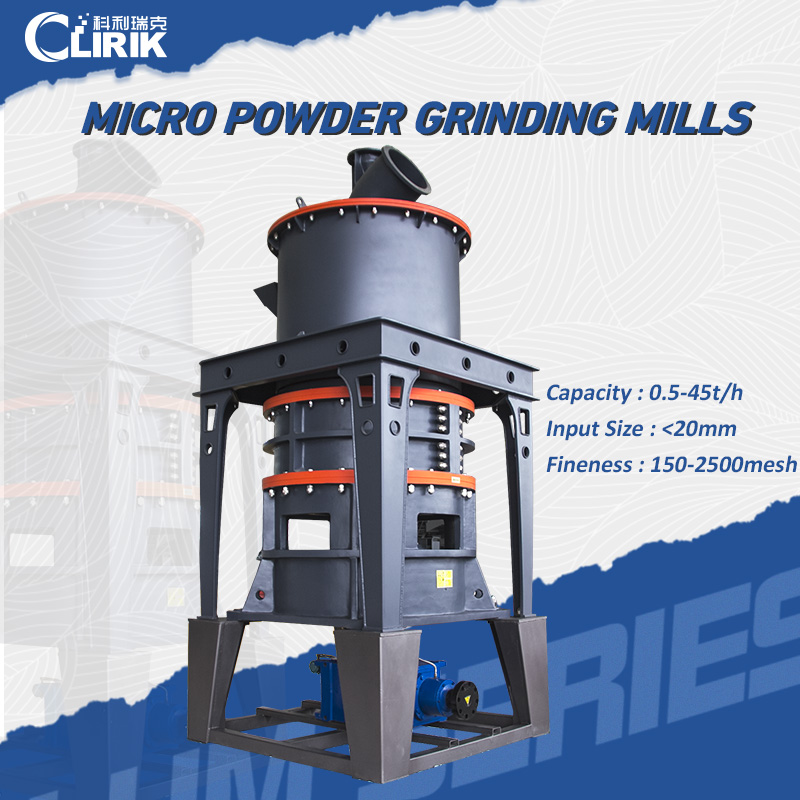

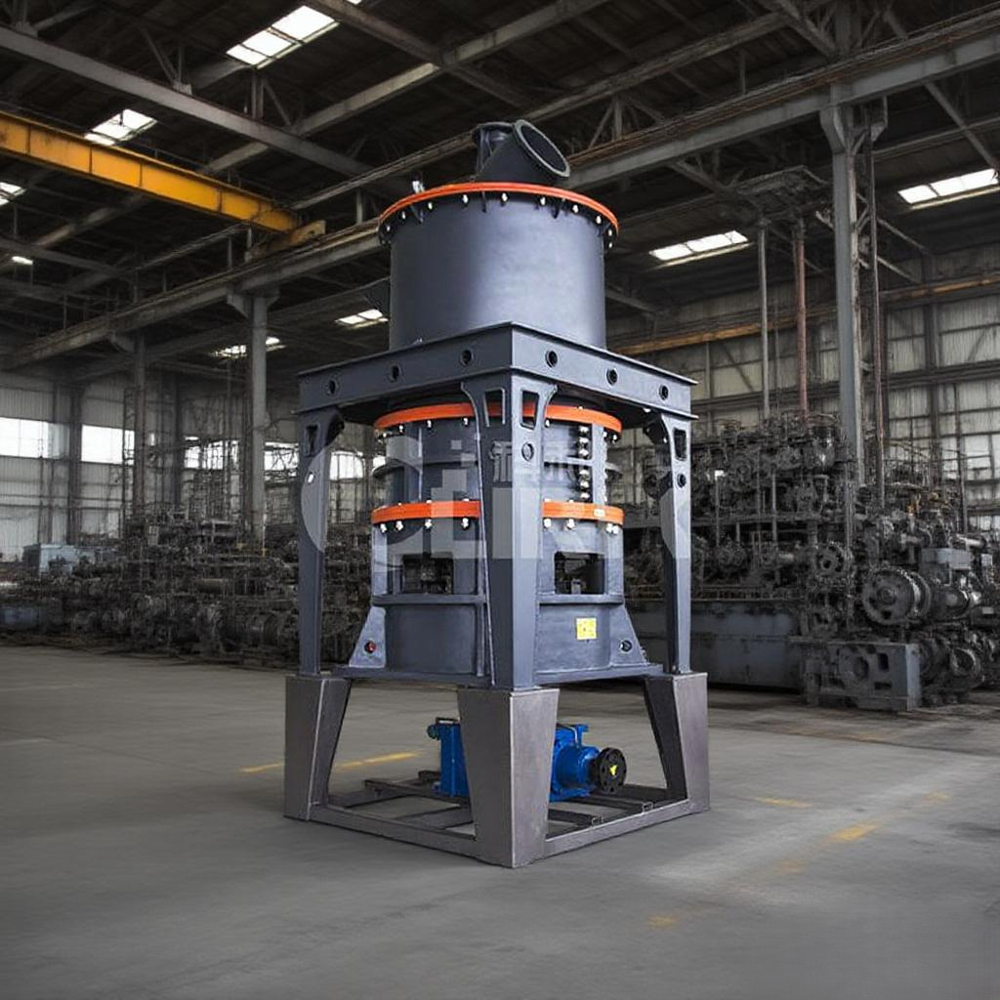

CaCO3 Grinding Mill Machine

CaCO3 Grinding Mill Machine
CaCO3 Grinding Mill Machine
Send Inquiry
Product Code : 08
Brand Name : CLIRIK
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

Production description of CaCO3 grinding mill machine:

Brand: CLIRIK

Model: HGM80, HGM90, HGM100, HGM125, and HGM1680L

Capacity: 0.4 -30t/h

Input size: 20 mm

Finished size: 150~2500 meshes, 5-100 micron

Power: 123-430 kw

Warranty: a).one year against manufacturing defect;  b).offer lifetime consultation on problems occurred

Features: 1.High Efficiency;  2.Long lifecycle of spare parts;  3.High safety and reliability;  4.High fineness, flexible adjustment;  5.Environment-friendly

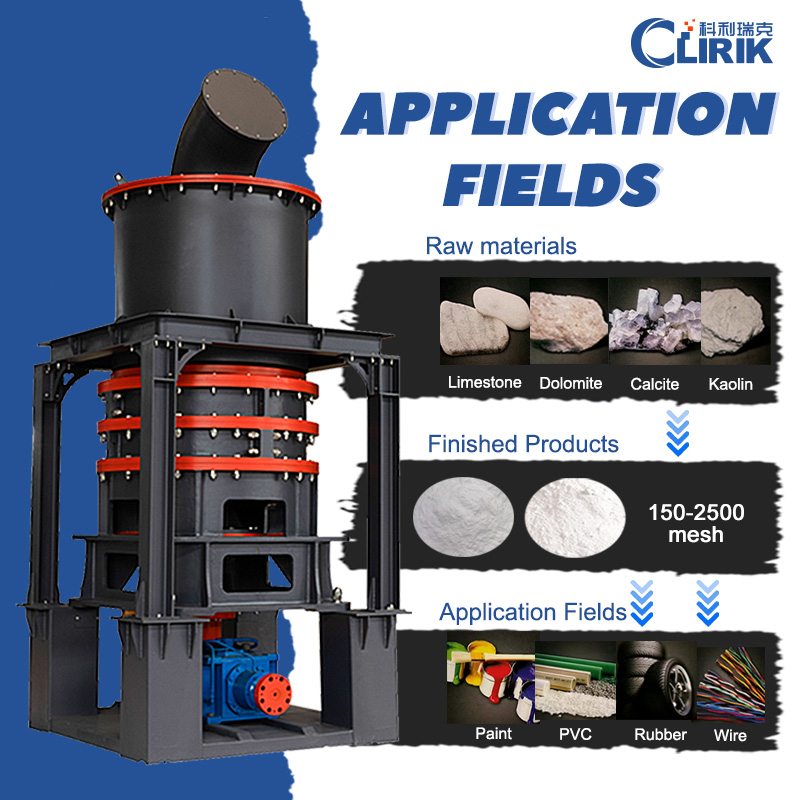

Application of CaCO3 grinding mill machine:

HGM Series CaCO3 grinding mill machine specializing in producing fine and super calcium carbonate powder of non-inflammable and brittle materials with Moh's hardness under six, such asvermiculite, vermiculite and vermiculite, calcium carbonate powder, calcium carbonate powder, calcium carbonate powder, calcium carbonate powder, calcium carbonate powder, rock phosphate, phosphate, serpentine, etc., totally more than 100 kinds of materials.



Working Principle of CaCO3 grinding mill machine:

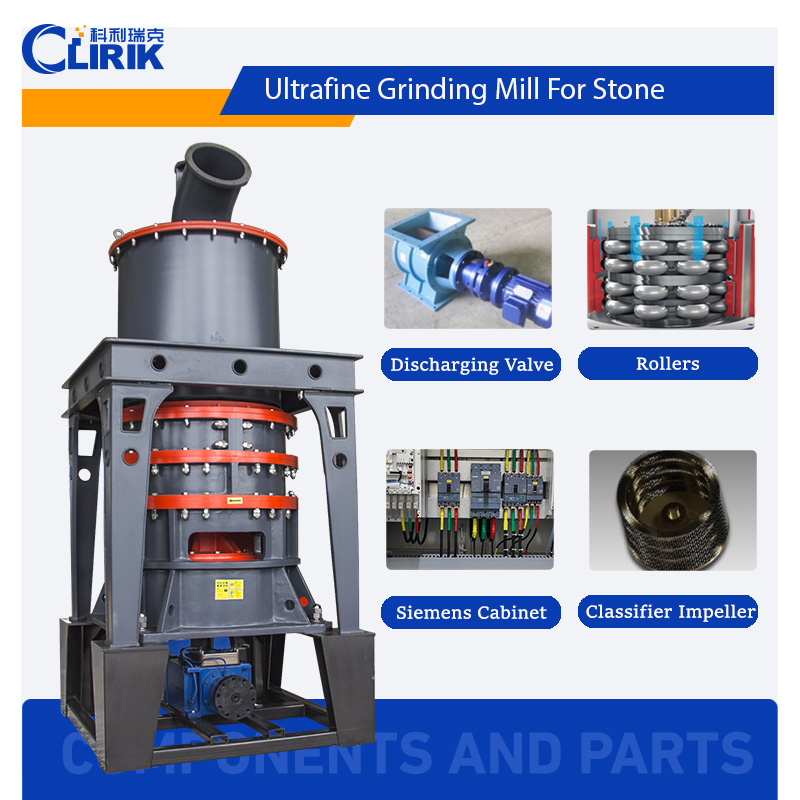

The main bearing and each dial are driven by electro motor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse material return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.



Technical specification of CaCO3 grinding mill machine:

ModelHGM80HGM90HGM100HGM125HGM1680L
Ring Diameter(mm)800900100012501680
Ring Number (PCS)33-4444
Roller Number(PCS)18-2124-2928-3630-4430-40
Main Shaft Speed (r. p. min)230-240200-220180-200135-155120-130
Input Size (mm)0-100-100-150-150-20
Finished Size (um/mesh)74-5
(200-2500)
74-5
(200-2500)
74-5
(200-2500)
100-6
(150-2000)
100-9
(150-1500)
Capacity (t/h)0.4-4.50.6-6.51-92-163.8-30
Outlet Size L*W*H (m)13.9*4*6.214.7*4.8*7.218*4.6*8.614*9*10.2526.3*7.5*11.9


Unit: KWHGM80HGM90HGM100HGM125HGM1680L
Main Unit55-752*45132185-200315
Classifier18.518.53037-4*155*18.5
Blower4555752*45-2*552*75-2*90
Crusher18.518.518.54575
Bucket Elevator33447.5
BeltConveyor Feeder2.22.22.233
Spiral Conveyor333-42*32*5.5
Discharging Valve2*0.751*0.75  1*1.12*1.12*1.12*0.75-2*1.5
Air compressor1115222*15-3755
Remark:
For the data with prefix such as "2*xx",it means there are two motors 2*0.75,configuredfor one item Forexample,discharging valve,HGM80 with configuration it means there are 2 pieces of 0.75KW motors installed with discharging valve.



Note: This specification is just referencing, any changes are subject to the products.

Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
  • Supply Ability
  • 1000 sets Per Month
  • Delivery Time
  • 15 Days
  • Packaging Details
  • Wooden Box Packing.
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Certifications
  • ISO 9001:2008
